VFCOB32AS08-3B15-5N

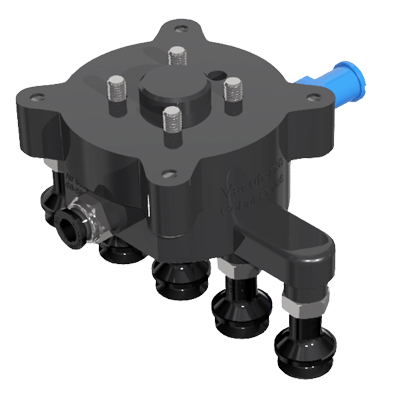

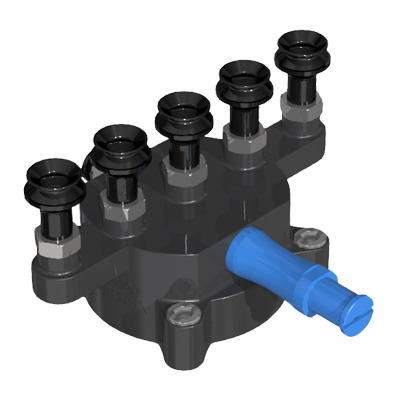

Collaborative end of arm vacuum gripper.

Applications

• COBOT Tooling
• Collaborative Robot Applications
• Pick and Place
• Small carton and package handling
• Small parts vacuum pick and place

Specifications:

• 31.5mm PCD Robot Plate Adapter
• 5 x 15mm diameter single bellows NBR suction cups
• 2.6CFM Vacuum venturi
• 1/4 inch push to connect air supply

Please note that this tool is available to fit any robot and is also available with different size vacuum venturi or suction cups.

HTS Code - 8428.90.0000
