BC1/4-N1

BC1/4-N1
Hot
BC1/4-N1

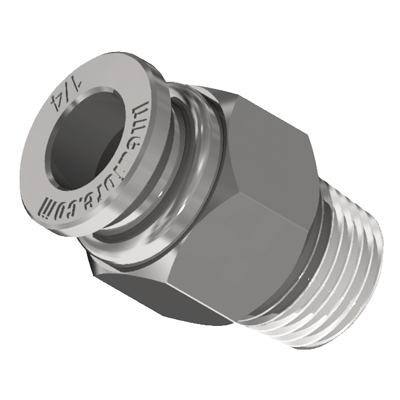

1/4" Tube - 1/8 NPT Nickel-Plated Brass Male Stud Fitting

This Pneuforce nickel-plated brass push-to-connect fitting is designed for reliable tube connection in compressed air and vacuum systems. The all-metal body construction is suited to harsh industrial environments where durability, temperature resistance and secure tube retention are important.

The fitting includes a positive Click-Click grip collar release feature, providing audible and tactile feedback when the collar is depressed during tube removal.

1/4" TubeTube Size
1/8 NPTThread / Connection
BrassNickel-Plated Body
Air + VacuumService

Technical Specifications

SpecificationDetails
Product TypeMale Stud Fitting push-to-connect fitting
Part NumberBC1/4-N1
Tube Size1/4" Tube
Thread / Port Size1/8 NPT
Body MaterialAll-metal nickel-plated brass
Tube ReleasePositive Click-Click grip collar feedback during tube disengagement
MediaCompressed air and vacuum
Operating PressureFull vacuum (29inHg) to 12 bar (176 PSI)
Operating Temperature-40°C to +120°C / -40°F to +248°F
HS / HTS CodeHS Code 7412.20 & HTS Code 7412.20.0035

Industrial Nickel-Plated Brass Fitting

This B-Series all-metal fitting is intended for applications where plastic-bodied fittings may not be preferred. Nickel-plated brass provides excellent mechanical strength, corrosion resistance and long service life in demanding pneumatic and vacuum installations.

29inHgVacuum Rated
176 PSIMax Pressure
120°CMax Temperature
Click-ClickTube Release

Typical Applications

  • Industrial compressed air systems
  • Vacuum automation and pick-and-place equipment
  • Machine building and OEM pneumatic panels
  • Robotics and end-of-arm tooling air lines
  • Harsh industrial environments requiring metal fittings
  • Maintenance replacement for existing push-to-connect fittings

Fitting Function

This male stud fitting connects push-to-connect tubing to a threaded port in a compact straight configuration. It provides a fast push-to-connect tube interface while maintaining the ruggedness of an all-metal nickel-plated brass body.

Installation Note: Cut tubing squarely and push the tube fully into the fitting before pressurizing or applying vacuum. To remove tubing, depress the grip collar; the Click-Click release feedback helps confirm the collar has been disengaged for tube removal. Always confirm tubing compatibility for pressure, temperature and media.

Frequently Asked Questions

What is this fitting made from?

This fitting has an all-metal nickel-plated brass body, making it suitable for harsh industrial environments and demanding pneumatic applications.

Can this fitting be used for vacuum?

Yes. These Pneuforce nickel-plated brass push-to-connect fittings are suitable for compressed air and vacuum service from full vacuum up to 12 bar / 176 PSI.

What does Click-Click tube release mean?

The Click-Click feature provides audible and tactile feedback as the grip collar is depressed during tube removal. This helps confirm the collet has disengaged from the tubing for quicker maintenance and servicing.

What temperature range can this fitting handle?

The operating temperature range is -40°C to +120°C, which is equivalent to -40°F to +248°F.

Where are all-metal brass fittings typically used?

They are commonly used on industrial machinery, pneumatic control panels, vacuum automation systems, robotics, packaging equipment and other environments where strength and temperature resistance are important.


Link to Pneuforce Data Sheets
Please Login or Register to review
Please Login or Register to review
Ships from Indianapolis, USA
List Price $2.78 each
10 or more $2.78 each
50 or more $2.50 each
100 or more $2.09 each
  • Stock: 6011
Add to Cart
Buy Now Question about this product?
Add to Wish List Compare this Product

Suitable for Compressed Air, Vacuum & NON Potable Water Applications
