Inch Size Push-In Pneumatic Fittings

Push To Connect Inch Tube Fittings

Inch Push-In Fittings for Imperial Pneumatic Tubing

Pneuforce inch push-in fittings are designed for connecting imperial size pneumatic tubing to valves, cylinders, manifolds, air preparation equipment, vacuum generators and other compressed air components. These one-touch pneumatic fittings provide a fast, reliable and leak-resistant connection for polyurethane and nylon tubing while allowing the tubing to be disconnected and reconnected repeatedly without damage.

This category contains push-in fittings specifically designed for inch size tubing commonly used throughout North American pneumatic systems. They are widely used by machine builders, OEM manufacturers, maintenance technicians and automation engineers for compressed air and vacuum applications.

Download Pneuforce Fittings Datasheet

Inch Push-In Fitting Features

Designed for inch (imperial) pneumatic tubing
Fast one-touch tube installation and removal
Compatible with polyurethane and nylon air tubing
NPT, BSPP, BSPT and universal thread options available
Suitable for compressed air and vacuum systems
Working pressure: 0-150 PSI / 10 bar
Proof pressure: 450 PSI / 30 bar
Vacuum duty: 29.5" Hg / 14 mbar(a)
Standard working temperature: 32-140ºF / 0-60ºC
All metal fittings rated -40-248ºF / -40-120ºC
High temperature versions available upon request
Designed for repeated connection and disconnection

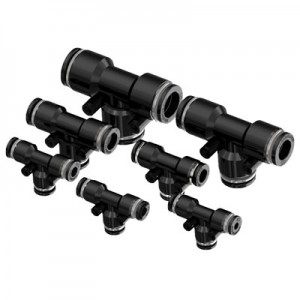

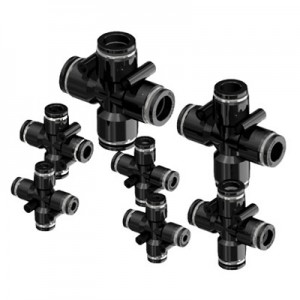

What Are Inch Push-In Fittings?

Inch push-in fittings are pneumatic tube fittings designed specifically for imperial tube outside diameters such as 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2" and larger tube sizes. The tubing is simply pushed into the fitting where an internal gripping mechanism securely holds the tube while an internal seal prevents compressed air leakage.

These fittings are often referred to as push-to-connect fittings, one-touch fittings or instant fittings and are one of the most popular connection methods used in modern pneumatic automation because they simplify machine assembly and maintenance.

Imperial Tube Sizes

Unlike metric tubing, imperial pneumatic tubing is measured in inches using the tube outside diameter. Selecting the correct tube size is critical for achieving a secure seal and reliable tube retention.

Pneuforce inch push-in fittings are manufactured to provide dependable connections with commonly used polyurethane and nylon pneumatic tubing found throughout North American compressed air systems.

Available Thread Types

Pneuforce inch push-in fittings are available with several thread styles to suit a wide variety of pneumatic equipment.

NPT Threads: National Pipe Taper threads commonly used throughout North America.
BSPP (G) Threads: British Standard Pipe Parallel threads commonly found on imported pneumatic equipment.
BSPT (R) Threads: British Standard Pipe Taper threads used on many international machines.
Universal Threads: Designed to connect with female NPT, NPSF, BSPT, BSPP, G and ISO thread standards depending on the application.

Common Applications

Control Valves: Connecting pneumatic tubing to solenoid valves, manual valves and directional control valves.
Pneumatic Cylinders: Reliable air connections for single and double acting cylinders.
Vacuum Venturi: Leak-resistant tubing connections for vacuum generation systems.
Pneumatic Tools: Air drills, grinders, impact wrenches and production workstations.
FRL Units: Filters, regulators, lubricators and compressed air preparation equipment.
Industrial Automation: Packaging machinery, assembly equipment, robotics, machine tools and OEM automation systems.

Choosing the Correct Inch Push-In Fitting

Selecting the correct push-in fitting requires matching both the tube outside diameter and the thread size of the pneumatic component. Other considerations include fitting style, operating pressure, temperature range, available installation space and whether the application uses compressed air or vacuum.

For reliable performance, tubing should always be cut square, inserted fully into the fitting and inspected for damage before installation.

Frequently Asked Questions

What is an inch push-in fitting?

An inch push-in fitting is a pneumatic fitting designed for imperial size tubing measured by outside diameter in inches.

What tubing can be used with inch push-in fittings?

They are commonly used with polyurethane and nylon pneumatic tubing manufactured in imperial tube sizes.

What are the common inch tube sizes?

Common pneumatic tube sizes include 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2" and larger outside diameters depending on the application.

Can inch push-in fittings be used with vacuum?

Yes. Selected Pneuforce fittings are suitable for vacuum service up to 29.5" Hg when installed correctly.

What thread types are available?

Pneuforce offers NPT, BSPP, BSPT and universal thread configurations to suit most pneumatic equipment.

Can inch tubing be used in a metric fitting?

No. The tube outside diameter must exactly match the fitting size. Mixing inch and metric tubing can result in leaks or inadequate tube retention.

Why is my push-in fitting leaking?

Leaks are usually caused by damaged tubing, incorrect tube size, tubing that is not fully inserted or an incorrect thread connection.

How do I remove tubing from a push-in fitting?

Press the release collar toward the fitting body while pulling the tubing straight out.

Where are inch push-in fittings commonly used?

They are widely used on pneumatic cylinders, valves, FRL units, vacuum generators, machine tools, packaging machinery and industrial automation equipment throughout North America.

How do I choose the correct inch push-in fitting?

Match the tubing outside diameter, thread type, thread size, fitting style, operating pressure and application requirements to ensure a reliable compressed air connection.
