DC3/16-N1

DC3/16-N1
4-6 Weeks
DC3/16-N1

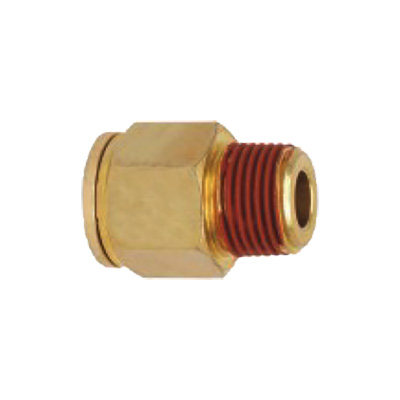

DC3/16-N1 3/16 Tube 1/8NPT Thread DOT Female Connector Push

3/16 Tube 1/8NPT Thread DOT Female Connector Push to Connect Fitting.. 3/16 Tube 1/8NPT Thread DOT Female Connector DOT air brake fitting for heavy-duty

This Vacuforce component is intended for industrial vacuum automation and material-handling systems.

DC3/16-N1Model
Vacuum Automation ComponentProduct Family
PneuforceManufacturer
IndustrialApplication

Technical Specifications

SpecificationDetails
ModelDC3/16-N1
Product FamilyVacuum Automation Component
ManufacturerPneuforce
HTS Code7412.20.0035

Application Guidance

Confirm dimensions, interfaces, materials and operating conditions against the product data before installation.

Product Features & Existing Technical Details

  • CA360 Brass Construction
  • Temp Range -40F to +200F (-40C to +93C)
  • For use with Nylon Tubing - SAE J844 Type A and B
  • Maximum Pressure 150psi(g)
  • Complies with DOT Federal Motor Vehicle Safety Standard 106 (FMVSS 106)
  • 1/2 Tube
  • 1/8NPT Thread

Typical Applications

  • Industrial vacuum automation
  • Machine building
  • Material handling

Important: Product suitability depends on the actual operating conditions. Confirm dimensions, connections, material compatibility, vacuum or pressure requirements, cycle conditions and any required safety factor before final machine integration.

Frequently Asked Questions

What should be verified before installation?

Confirm model number, dimensions, connection sizes, materials and operating conditions against the applicable product data.

Is application testing recommended?

Yes. Final suitability should be confirmed under the actual machine, load and environmental conditions.

Please Login or Register to review
Please Login or Register to review
Ships from Indianapolis, USA
$3.87 each
5 or more $3.87 each
50 or more $3.48 each
100 or more $3.10 each
  • Stock: 4-6 Weeks
Add to Cart
Buy Now Question about this product?
Add to Wish List Compare this Product
This product has a minimum quantity of 300
