HN-2

HN-2
Please Call
HN-2

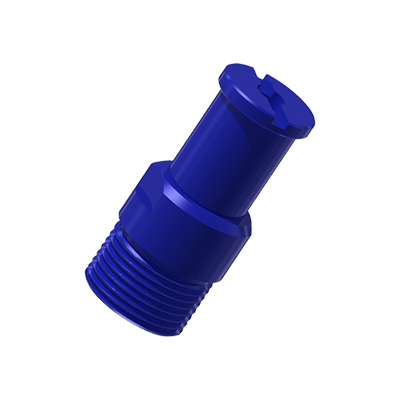

HD-2 Venturi cartridge holder for AS08-2, AX10-2, AP12-2, AP12-3 and AD16-2

This Vacuforce product is designed for industrial vacuum automation. HD-2 Venturi cartridge holder for AS08-2, AX10-2, AP12-2, AP12-3 and AD16-2

This cartridge-style venturi generator is designed for integration into compact vacuum systems and manifolds where compressed air is converted into vacuum close to the point of use.

HN-2Model
Vacuum Generator CartridgeProduct Family
IndustrialApplication

Technical Specifications

HTS Code8481.90.9043

Cartridge Integration

Cartridge generators are commonly integrated into manifolds or custom tooling. Confirm the cartridge size, compressed-air supply, vacuum flow requirement and sealing arrangement before installation.

Product Overview

HN-2 Venturi cartridge holder for AS08-2, AX10-2, AP12-2, AP12-3 and AD16-2 HTS Code - 8481.90.9043

Typical Applications

  • Compact vacuum manifolds
  • Custom end-of-arm tooling
  • Decentralized vacuum generation

Important: Product suitability depends on the actual operating conditions. Confirm dimensions, connections, material compatibility, vacuum or pressure requirements, cycle conditions and any required safety factor before final machine integration.

Frequently Asked Questions

Does this vacuum generator require a mechanical pump?

No. Venturi generators use compressed air to create vacuum at the point of use.

What should be checked before sizing a venturi?

Check required vacuum flow, evacuation time, leakage, supply pressure, tubing size and the desired maximum vacuum level.

Why locate a venturi close to the suction cup?

Shorter vacuum lines can reduce evacuation volume and improve response time in fast-cycle automation.

Link to Pneuforce Data Sheets
Please Login or Register to review
Please Login or Register to review
Ships from Indianapolis, USA
List Price $47.33 each
  • Stock: Please Call
