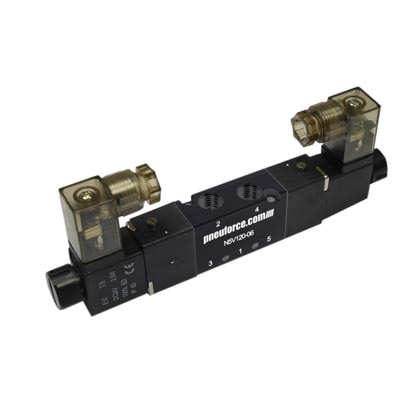

Pneuforce N4V120-06-24VDC is a 5/2 solenoid directional valve. Five-port, two-position directional control alternates supply and exhaust between a double-acting cylinder’s two working ports. Check single- or double-solenoid actuation and coil voltage.

The primary port designation on this model is 1/8 NPT. Some multiport valves use different exhaust-port dimensions; consult the full product data before selecting fittings.

5/2 means two switching positions and 5 ports. It describes the directional flow-path arrangement, not pipe thread size.

A 5/2 directional valve is commonly used to alternately supply and exhaust the two chambers of a double-acting cylinder. Confirm required actuation and fail-state behaviour.

This exact model is specified for 24VDC. Match the coil rating to the control supply and check the connection type and duty rating.

A single-solenoid version typically returns by spring when de-energised; a double-solenoid two-position version can retain the last commanded spool state. Check the actual schematic and valve construction.
