N4R110-06

N4R110-06
N4R110-06

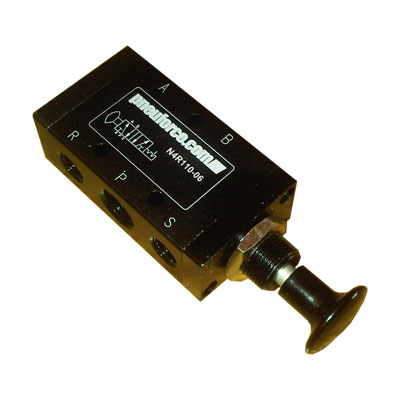

5/2 Hand-Pull Directional Valve | N4R110-06

Pneuforce N4R110-06 is a manual hand-pull valve for compressed-air directional control. Select this model by valve function, connection size and manual actuation arrangement.

1/8 NPTPort Size
5/2Valve Function
Pneumatic Hand Pull ValveProduct Type
N4R110-06Part Number

Technical Specifications

SpecificationDetails
Product TypePneumatic Hand Pull Valve
Part NumberN4R110-06
Port Size1/8 NPT
Valve Function5/2
Product DetailPull, push handle operator
Product Detail 25/2 or 5-way operation
Product Detail 3Spool valve 5 port design
LubricationPre lubricated
Product Detail 4Air Pilot, Spool Design
Response TimeResponse Time < 20ms
Operating PressureOperating Pressure: 21 to 115 PSI
Air Quality40 micron filtered air or inert gas
HTS Code8481.20.00.10

How This Product Works

Pulling or pushing the manual operator shifts the internal spool to redirect compressed-air flow between valve ports.

Key Features

  • 1/8NPT Ports
  • Pull, push handle operator
  • 5/2 or 5-way operation
  • Spool valve 5 port design
  • Pre lubricated
  • Air Pilot, Spool Design
  • Response Time < 20ms
  • Operating Pressure: 21 to 115 PSI
  • 40 micron filtered air or inert gas

Typical Applications

  • Manual actuator control
  • Machine setup functions
  • Pneumatic fixtures
  • Industrial machinery
  • Maintenance circuits

Selection and Installation

Match the valve or component function, port size, actuation method and any electrical rating shown above to the pneumatic circuit. Use properly prepared compressed air and install the component in accordance with the machine design and applicable service requirements.

Frequently Asked Questions

What does N4R110-06 do?

It is a 5/2 hand-pull pneumatic directional valve for manually switching pressure and exhaust between two actuator lines.

What does 5/2 mean?

Five ports and two spool positions, commonly used with double-acting pneumatic cylinders.

Does it need electricity?

No. The operator manually pulls or resets the valve rather than energising an electrical coil.

What must be checked before installation?

Confirm actuator behaviour, required operator/return arrangement, port sizes and supply pressure with the machine circuit.

Can it switch a double-acting cylinder?

Yes, where its flow capacity, port configuration and manual actuation are suited to the cylinder.

Link to Pneuforce Data Sheets
Please Login or Register to review
Please Login or Register to review
Ships from Indianapolis, USA
$45.89 each
10 or more $41.30 each
50 or more $36.71 each
100 or more $32.12 each
  • Stock: 35
Add to Cart
Buy Now Question about this product?
